HK60N

Call for Pricing

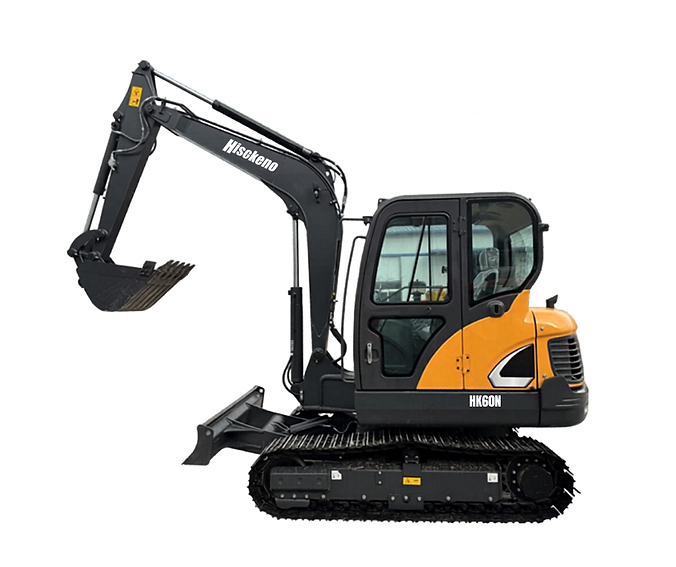

The Hisckeno HK60N is a powerful 12,125 lb mini excavator built for serious digging, land clearing, trenching, and heavy-duty jobsite performance. Powered by a 58 HP Yanmar diesel engine with an impressive 12.5 ft digging depth and nearly 20 ft of reach, the HK60N delivers the strength, hydraulic power, and stability contractors need to tackle demanding projects with confidence.

Standard Features:

  • 58 HP @ 2290 rpm

  • Hydraulic Pressure: 4,061 psi

  • Hydraulic Flow: 38 GPM

  • Swing Speed: 10.7 rpm

  • Travel Speed: 2.9 mph

  • Bucket Capacity: 0.27 yd³

  • Bucket Force: 8,655 lbf

  • Arm Force: 9,440 lbf

  • Fuel Tank Capacity: 30.4 gal

  • Hydraulic Oil Capacity: 16.4 gal

  • Engine Oil Capacity: 2.3 gal

Size Chart:

  • Operating Weight: 12,125 lbs

  • Overall Dimensions:

    •   19.3 ft × 6.1 ft × 8.5 ft

  • Boom Length: 9.8 ft

  • Arm Length: 5.25 ft

  • Track Width: 15 in

  • Bucket Size: 30 × 26 × 18 in

Digging Specs:

  • Max Dig Depth: 12.5 ft

  • Max Reach: 19.8 ft

  • Max Dump Height: 13.3 ft

  • Bucket Force: 8,655 lbf

  • Arm Force: 9,440 lbf
